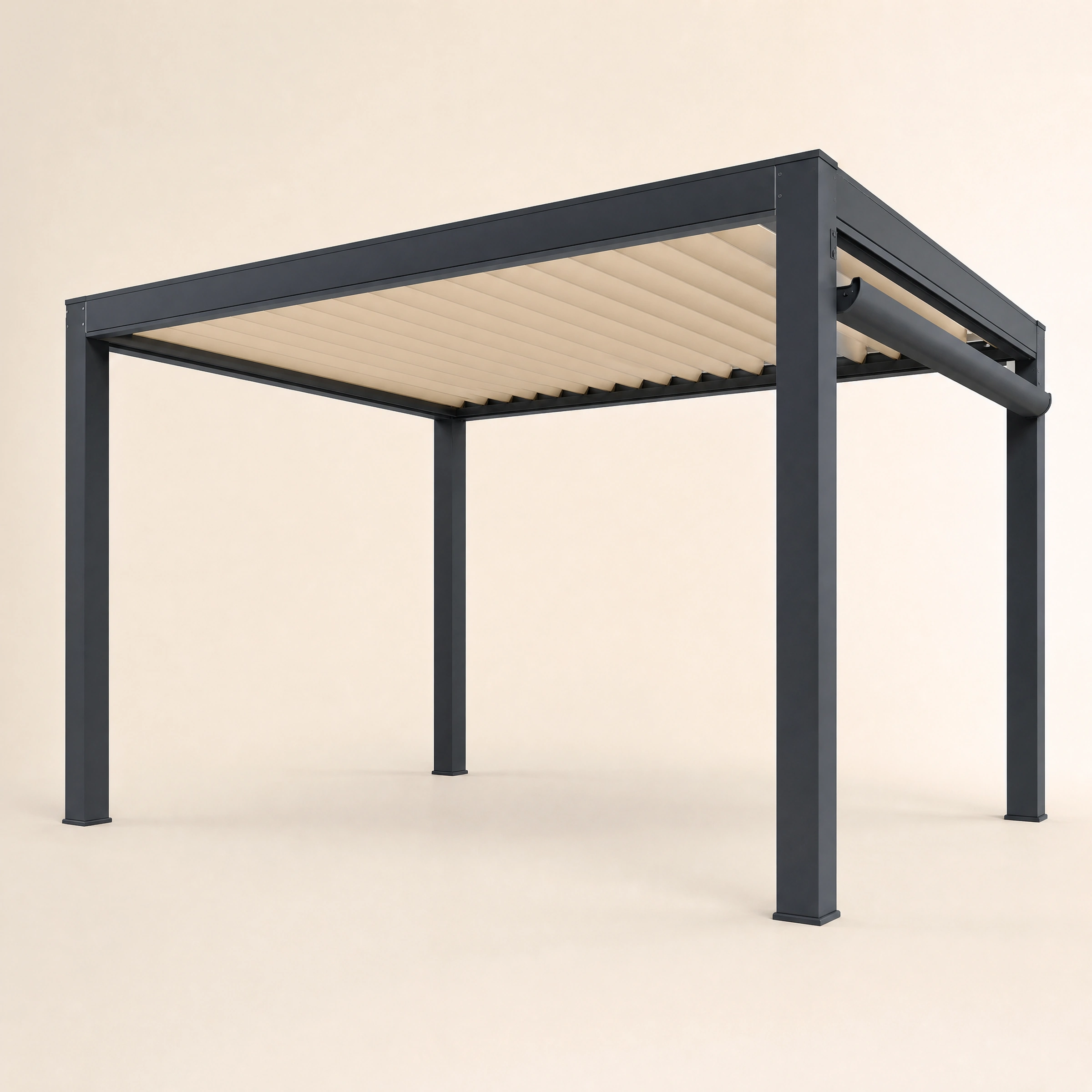

Retractable Louver Pergola

Name: Retractable Louver Pergola
Brand: WHALE HORIZON

A retractable-louver project direction built around the confirmed 230 Series structural profile set.

This platform is intended for projects that require a retractable louver roof and a more open-sky experience. The structural profiles match the confirmed 230 Series data; drive, travel direction, stacking arrangement and final opening range are verified during technical review before quotation.

Available Configuration

Sizes, colors and options

Available choices depend on the selected model, quantity and project requirements. Final details are confirmed in the quotation.

Required size (width × projection × height): Enter approximate overall dimensions and the number of modules if known.
Roof opening requirement: Prioritize maximum opening · Balanced shade and opening · Please recommend
Frame color / finish: Show available finishes · Custom color request
Controls, lighting, screens or other requirements: Custom requirements can be reviewed.

Request a quotation

Ask a question on WhatsApp

No public pricing or online checkout. Quotations are prepared for the confirmed configuration and destination.

Key Features

Why this platform may fit your project.

Retractable roof direction

Designed as a project-specific roof direction for customers seeking a wider open-sky configuration.

Confirmed 230 Series profiles

The post, beam, gutter and louver dimensions follow the verified 230 Series product sheet.

Mechanism reviewed by project

Drive, louver travel, controls and compatible accessories are confirmed for the intended layout.

Technical Information

Review the maintained specifications.

The table shows maintained product information. Final project specifications are confirmed in the quotation and approved product documents.

Post profile: 150 × 150 × 2.5 mm
Beam profile: 248.2 × 50 × 2.2 mm
Gutter profile: 85 × 85 × 1.8 mm
Louver profile: 230 × 55 × 2.0 mm
Drive and opening arrangement: Confirmed during technical review

Customization

Adapt the platform.

Dimensions, module layout, finish, drive, controls and compatible enclosure requirements are reviewed as part of the project quotation.

Delivery

Coordinate the destination.

Packing and international delivery scope are confirmed for the destination, project dimensions and order quantity.

Installation

Prepare local execution.

Final drawings, site conditions and installation responsibilities are confirmed before order approval.

FAQ

Useful starting points.

Are the structural profiles the same as the 230 Series?

Yes. The currently confirmed post, beam, gutter and louver profile dimensions match the 230 Series data shown on this page.

Is the retractable mechanism already fixed?

The drive, travel direction, stacking arrangement and opening range are confirmed for the final project layout before quotation.

Start an Enquiry

Discuss Retractable Louver Pergola.

Send one project brief and our China factory team will review the product direction, configuration and delivery requirements.
