Verified Product Series

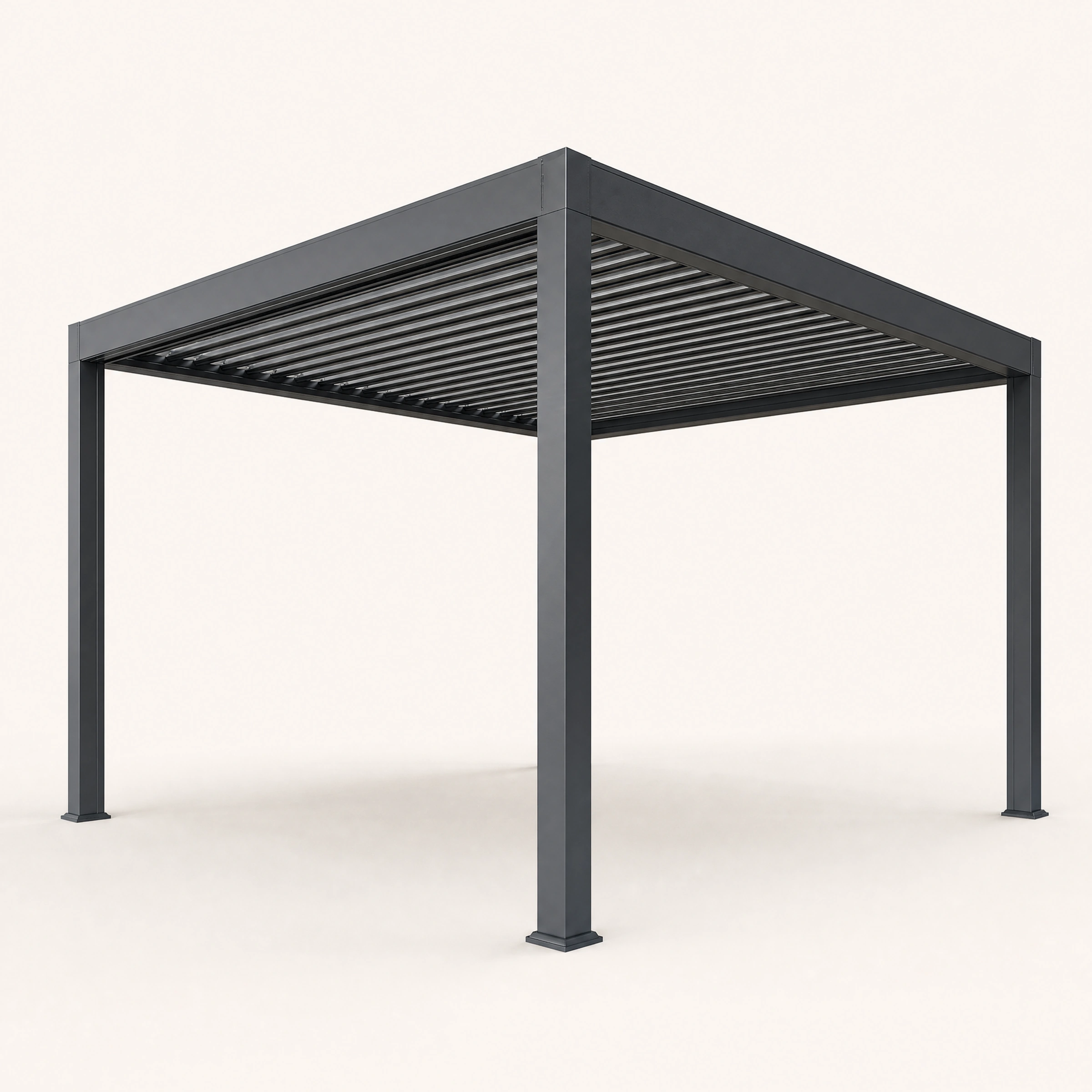

Project230 Series Custom Louvered Pergola

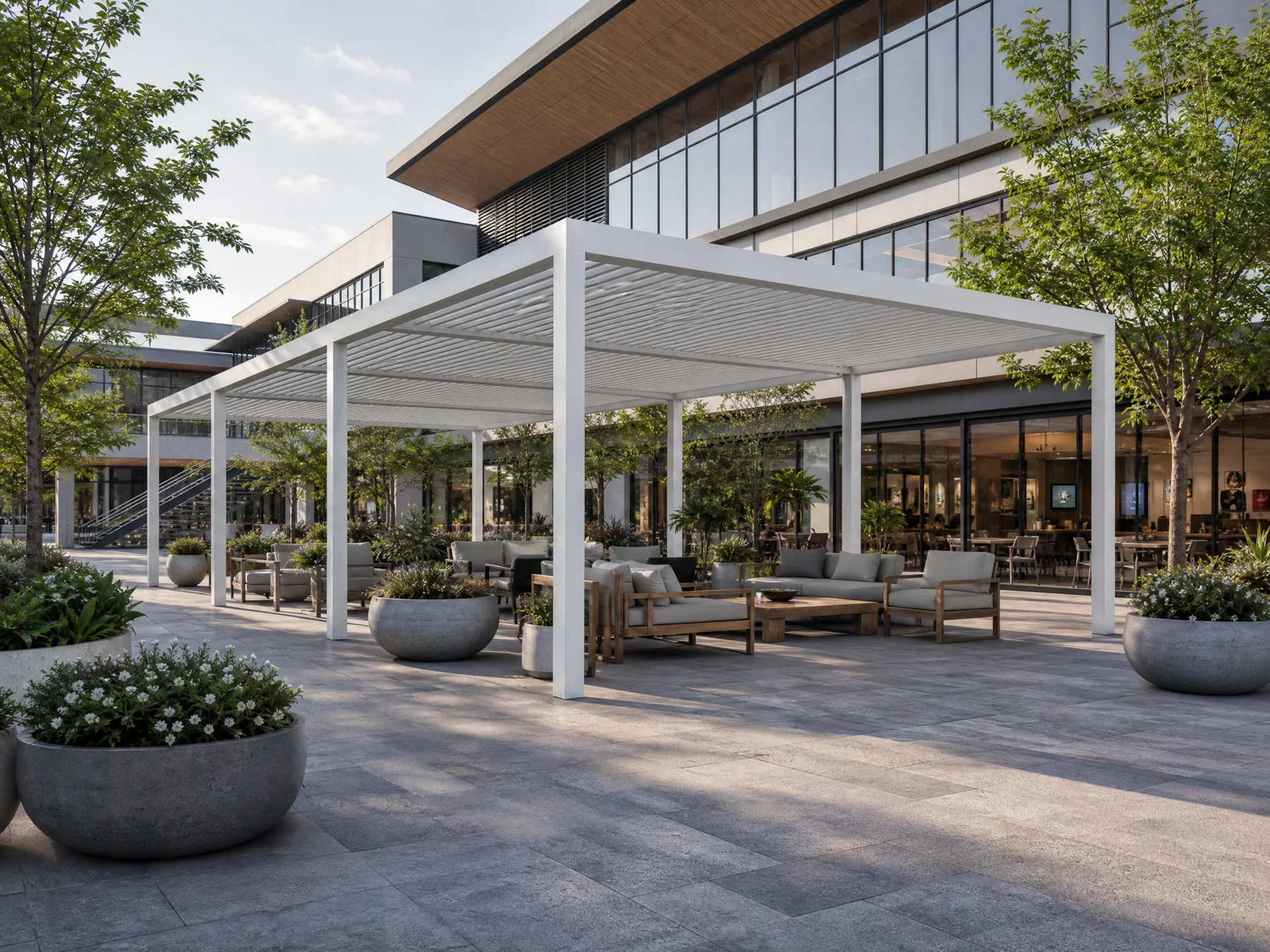

A 230 mm louver platform for larger custom layouts, with single-module planning up to 36 m².
The 230 Series is a custom project platform for larger pergola layouts. Share the intended dimensions, module arrangement and enclosure requirements so the structure and included components can be reviewed before quotation.
Request a quotationNo public pricing or online checkout. Quotations are prepared for the confirmed configuration and destination.
Key Features
Why this platform may fit your project.
Up to 36 m² per module
A single module can be planned up to 36 m², subject to final technical confirmation.
Project-based configuration

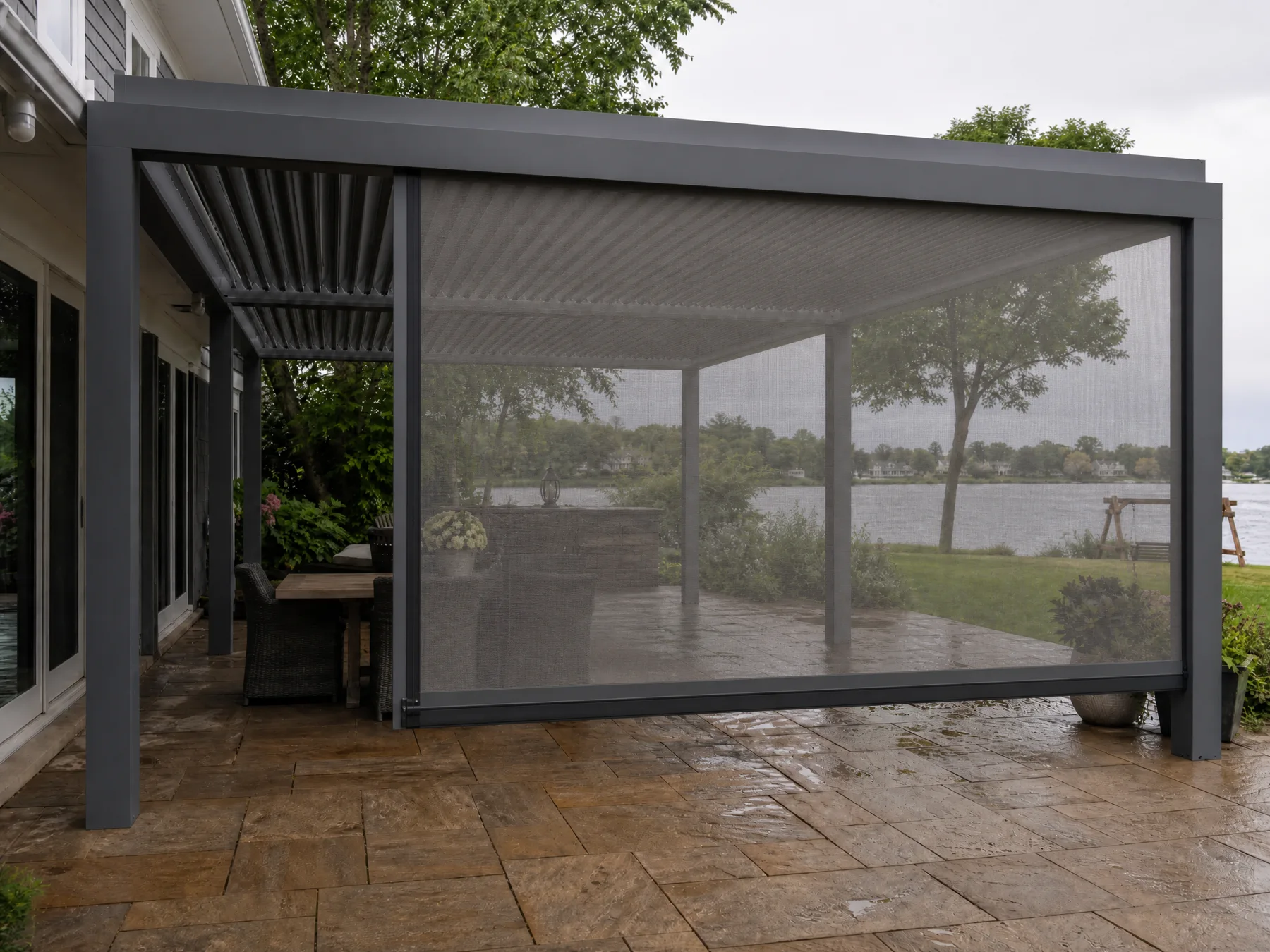

Columns, lighting, controls and compatible side-enclosure requirements are reviewed separately.
Technical Information
Review the maintained specifications.
The table shows maintained product information. Final project specifications are confirmed in the quotation and approved product documents.
- Post profile
- 150 × 150 × 2.5 mm
- Beam profile
- 248.2 × 50 × 2.2 mm
- Gutter profile
- 85 × 85 × 1.8 mm
- Louver profile
- 230 × 55 × 2.0 mm
- Maximum single-module area
- 36 m²
- Standard post height
- Up to 2.7 m
Customization
Adapt the platform.
Overall dimensions, module layout, columns, finish, lighting and compatible enclosure requirements are reviewed as part of the project quotation.
Delivery
Coordinate the destination.
Packing and international delivery scope are confirmed for the destination, project dimensions and order quantity.
Installation
Prepare local execution.
Final drawings, site conditions and installation responsibilities are confirmed before order approval.
FAQ
Useful starting points.
What is the largest single-module area?
The current product sheet lists a maximum single-module area of 36 m², subject to final technical review.
Are columns and lights included?
Columns and lighting are configured and quoted separately for this platform.
Start an Enquiry
Discuss 230 Series Custom Louvered Pergola.
Send one project brief and our China factory team will review the product direction, configuration and delivery requirements.
