170 Series Motorized Louvered Pergola

Name: 170 Series Motorized Louvered Pergola
Brand: WHALE HORIZON

A motorized 170 mm louver platform with seven standard footprints for residential and commercial outdoor projects.

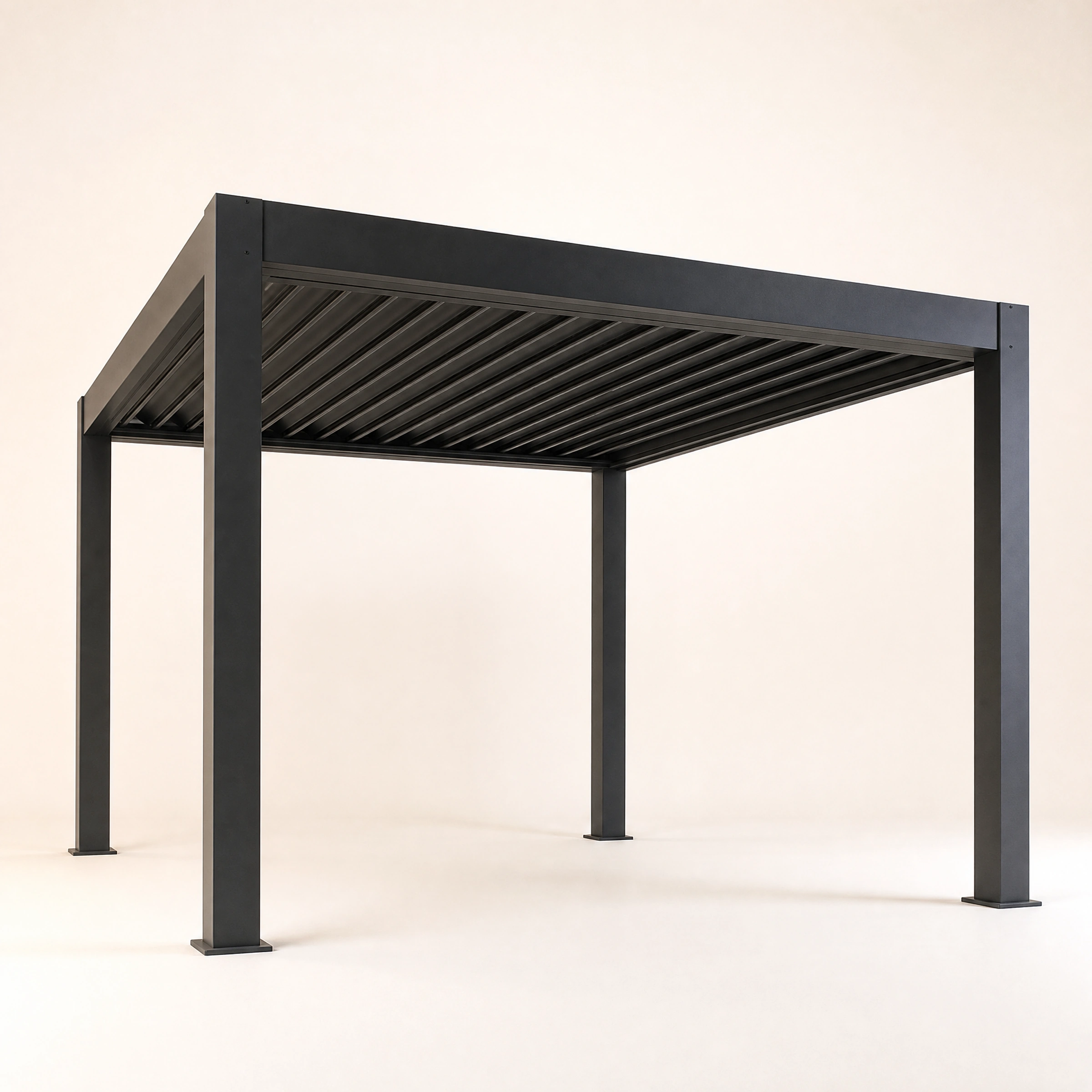

The 170 Series combines a 170 mm rotating louver roof with 150 mm posts. Seven standard footprints provide a clear starting point, while custom requirements can be reviewed for suitable residential and commercial projects.

Available Configuration

Sizes, colors and options

Available choices depend on the selected model, quantity and project requirements. Final details are confirmed in the quotation.

Size (width × projection × height): 3 × 3 × 2.7 m · 3 × 4 × 2.7 m · 3 × 5 × 2.7 m · 3 × 6 × 2.7 m · 4 × 4 × 2.7 m · 4 × 5 × 2.7 m · 4 × 6 × 2.7 m · Custom size
Frame color / finish: Show available finishes · Custom color request
Louver lighting: Not required · Add louver lighting · Please recommend
Controls, screens or other requirements: Custom requirements can be reviewed.

Request a quotation

Ask a question on WhatsApp

No public pricing or online checkout. Quotations are prepared for the confirmed configuration and destination.

Key Features

Why this platform may fit your project.

Seven standard footprints

Standard formats extend from 3 × 3 m to 4 × 6 m with a 2.7 m standard height.

Motorized roof

The rotating louver roof is configured with motorized operation and control.

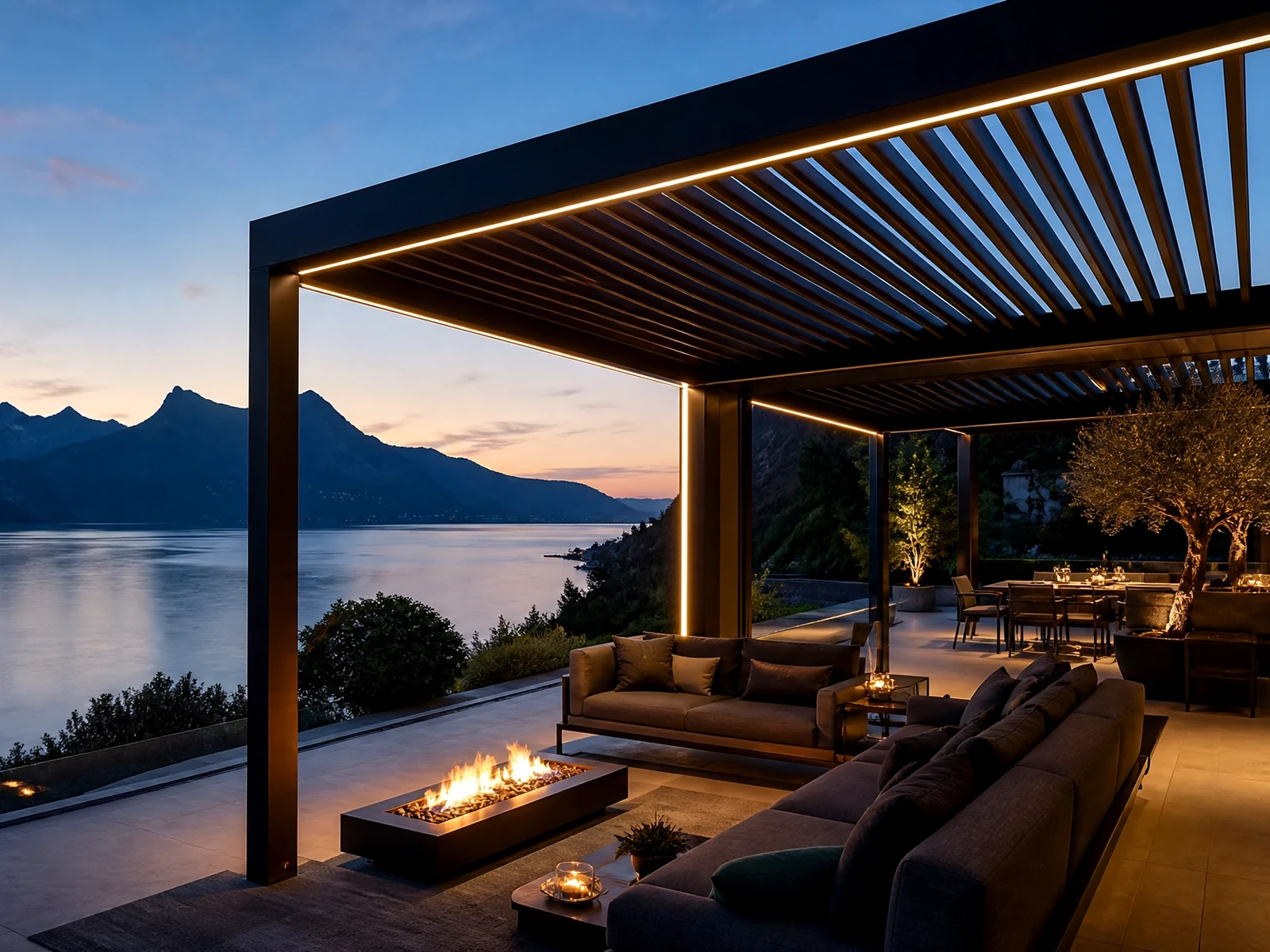

Optional louver lighting

Integrated louver lighting can be reviewed as an optional configuration.

Technical Information

Review the maintained specifications.

The table shows maintained product information. Final project specifications are confirmed in the quotation and approved product documents.

Post profile: 150 × 150 × 2.5 mm
Beam profile: 101 × 168 × 2.2 mm
Louver profile: 170 × 40 × 1.8 mm
Standard height: 2.7 m

Customization

Adapt the platform.

Standard sizes are listed for quick selection. Custom dimensions, finish and compatible accessories remain subject to technical confirmation.

Delivery

Coordinate the destination.

Packing and international delivery scope are confirmed for the destination, project dimensions and order quantity.

Installation

Prepare local execution.

Final drawings, site conditions and installation responsibilities are confirmed before order approval.

FAQ

Useful starting points.

Which sizes are standard?

Seven standard formats are listed, from 3 × 3 m through 4 × 6 m.

Can lighting be added?

Louver lighting is available as an optional configuration and is quoted separately.

Start an Enquiry

Discuss 170 Series Motorized Louvered Pergola.

Send one project brief and our China factory team will review the product direction, configuration and delivery requirements.
